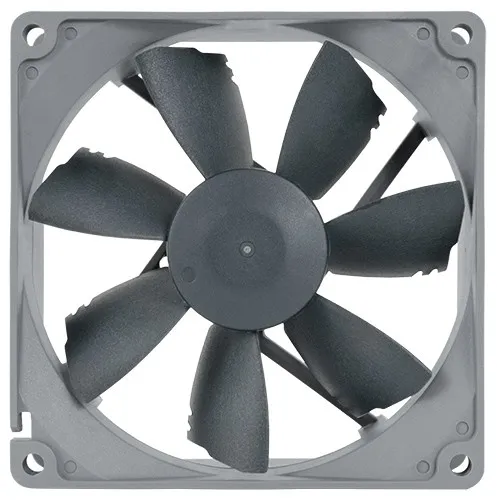

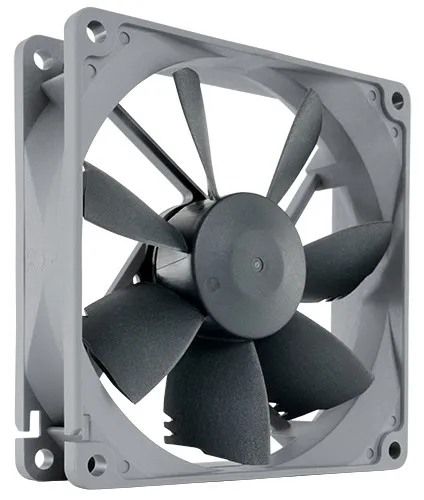

Noctua Fan 92mm NF-B9-redux-1600-PWM

Name: Noctua Fan 92mm NF-B9-redux-1600-PWM
Brand: Noctua
SKU: NF-B9-redux-1600-PWM
Price: 12.36 EUR
Availability: InStock

Code NF-B9-redux-1600-PWMEAN 4716123315315

12,36 €

In stock

Estimated delivery in Italy: Tue 27 Oct – Thu 29 Oct if you order by Sun 18 Oct at 14:00

Free shipping from 99,00 €

Tracked shipping: you get a number to follow your parcel.
Returns within 14 days, no reason needed.
Secure payment over an encrypted connection.

At a glance

Dimentions (mm): 92 x 92 x 25 mm
RPM: 350 RPM, 1600 RPM
Voltage: 12 V DC
Bearing type: SSO Bearing
Airflow: 37.85 CFM / 64.3 m3/h

All specifications

Description

The classic NF-B9 is a long-standing favourite among enthusiast users
around the world and helped to found Noctua’s reputation as a top-tier
manufacturer of premium quality quiet cooling components. The new redux
edition reissues this award-winning model in a streamlined, accessibly
priced package that has been reduced to the essential core: the NF-B9
premium fan. Its industry grade SSO-Bearing,
over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty
make the NF-B9 redux a proven premium choice that provides trusted
Noctua quality at an attractive price point. The 1600rpm PWM version
features Noctua’s proprietary NE-FD1
PWM IC for automatic speed control, which allows to strike a perfect
balance between high cooling capacity and low noise operation in each
given situation.

Details

Proven NF-B9 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by
Noctua’s classic NF-B9. Thanks to its impressive quietness, excellent
performance and impeccable quality, the NF-B9 has become an established
reference for quiet 92mm fans.

Streamlined redux edition

The redux product line reissues some of Noctua’s most popular,
award-winning models by presenting them in streamlined, accessibly
priced packages. All redux edition products are industry proven,
time-tested models that helped to found Noctua’s reputation as a
first-tier supplier of premium grade low noise cooling equipment.

Vortex-Control Notches

Noctua’s signature Vortex-Control Notches split up trailing edge
vortices and thus spread the fan’s noise emission over a wider range of
frequencies. This measure makes the fan sound more pleasant to the human
ear.

Bevelled Blade Tips

Reducing critical rotor stator interaction, Bevelled Blade Tips permit
to combine extended leading edges and a higher blade surface area with
quieter operation and thus form a cornerstone of the fan’s outstanding
efficiency.

Custom-designed PWM IC with SCD

Supporting fully automatic speed control via PWM, the fan uses Noctua’s
custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive
(SCD) technology. By providing smoother torque impulses, SCD suppresses
PWM switching noises and thus makes the fan quieter at lower speeds.

SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional
magnet that supports the self-stabilisation of the rotor axis, Noctua’s
time-tested SSO-Bearing technology has become synonymous with supremely
quiet operation and exceptional long-term stability.

Optional accessories

Users can choose from Noctua’s wide range of optional accessories such
as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors
or extension cables to upgrade redux edition fans according to their
individual needs.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding
longevity. Like all Noctua fans, the redux edition models feature an
MTBF rating of more than 150.000 hours and come with a full 6-year
manufacturer’s warranty.

FAN Specification

Size

92x92x25 mm

Connector

4-Pin PWM

Bearing

SSO-Bearing

Rotational Speed (+/- 10%)

1600 RPM

Min. Rotational Speed (PWM, +/-20%)

350 RPM

Airflow

64,3 m³/h

Acoustical Noise

17,6 dB(A)

Static Pressure

1,61 mm H₂O

Max. Input Power

0,96 W

Max. Input Current

0,08 A

Voltage

12 V

MTBF

> 150.000 h

Scope of Delivery

Fan
4 Fan Screws

Warranty

6 years

Features

Weight	0,16 kg
Dimensions	15,5 × 14,5 × 3,5 cm
DIMENTIONS(mm)	92 x 92 x 25 mm
RPM	350 RPM, 1600 RPM
VOLTAGE	12 V DC
BEARING TYPE	SSO Bearing
AIRFLOW	37.85 CFM / 64.3 m3/h
AMPERES (A)	0.08 A
COMSUMPTION(W)	0.96 W
NOISE LEVEL	17.6 dBA
CONNECTOR	4 pin PWM
LIFE IN HOURS	150000
