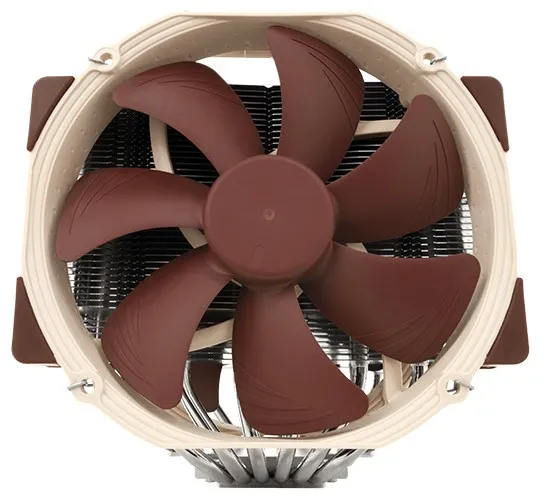

Noctua CPU Cooler NH-D15 LGA1700/1200/2066/AM4
Code NH-D15EAN 4716123315360
86,92 €
In stock
Estimated delivery in Italy: Tue 27 Oct – Thu 29 Oct if you order by Sun 18 Oct at 14:00
Free shipping from 99,00 €
- Tracked shipping: you get a number to follow your parcel.
- Returns within 14 days, no reason needed.
- Secure payment over an encrypted connection.
At a glance
- Type of cooling
- Air
- Compatibility - amd
- AM4, AM5
- Cooling capacity
- http://noctua.at/en/tdp-guide
- Fan size
- 150 x 140 x 25 mm
- Bearing type
- SSO2 Bearing
Description
 |
Based on the award-winning NH-D14 Noctua’s NH-D14 has received more than 350 awards and recommendations from leading international hardware websites and magazines, making it one of the most successful premium heatsinks ever built. With its expanded layout and dual NF-A15 fans, the NH-D15 further improves the D14’s much acclaimed quiet cooling performance. |
 |
6 heatpipe dual tower design As compared to conventional single tower heatinks, the NH-D15’s fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode. |
 |
Widened fin stack and expanded heatpipe layout Compared to the NH-D14, the NH-D15’s fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15’s superior efficiency. |
 |
High RAM compatibility in single fan mode Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm).* |
|
Dual NF-A15 140mm fans The NH-D15 features two of Noctua’s premium class NF-A15 140mm fans. Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.
|
 |
PWM support and Low-Noise Adaptor The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation. |
 |
Excellent component cooling Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15’s superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance. |
 |
SecuFirm2™ mounting system Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2™ mounting included with the NH-D15 guarantees perfect contact pressure and maximum convenience on all current sockets. |
 |
Compatibility with past and future sockets Complying with the open SecuFirm™ standard, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets. |
|
NT-H1 thermal compound Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
|
 |
6 years warranty Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15’s feature an MTBF rating of more than 150.000 hours and the entire NH-D15 package comes with a full 6 years manufacturer’s warranty. |
*In chassis with more than 165mm CPU cooler clearance, the front fan
can be moved upwards to make room for memory modules taller than 32mm.
Specifications
| Socket compatibility | Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required) | |
| Height (without fan) | 165 mm | |
| Width (without fan) | 150 mm | |
| Depth (without fan) | 135 mm | |
| Height (with fan) | 165 mm | |
| Width (with fan) | 150 mm | |
| Depth (with fan) | 161 mm | |
| Weight (without fan) | 1000 g | |
| Weight (with fan) | 1320 g | |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating | |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 | |
| Scope of Delivery |
|
|
| Warranty | 6 Years | |
|
Fan specifications |
||
| Model | 2x Noctua NF-A15 PWM | |
| Bearing | SSO2 | |
| Max. Rotational Speed (+/- 10%) | 1500 RPM | |
| Max. Rotational Speed with L.N.A. (+/- 10%) | 1200 RPM | |
| Min. Rotational Speed (PWM, +/-20%) | 300 RPM | |
| Max. Airflow | 140,2 m³/h | |
| Max. Airflow with L.N.A. | 115,5 m³/h | |
| Max. Acoustical Noise | 24,6 dB(A) | |
| Max. Acoustical Noise with L.N.A. | 19,2 dB(A) | |
| Input Power | 1,56 W | |
| Voltage Range | 12 V | |
| MTBF | > 150.000 h | |
Features
| Weight | 2,4 kg |
|---|---|
| Dimensions | 24 × 22 × 17 cm |
| TYPE OF COOLING | Air |
| COMPATIBILITY - INTEL | LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700, LGA 1851 |
| COMPATIBILITY - AMD | AM4, AM5 |
| COOLING CAPACITY | |
| FAN SIZE | 150 x 140 x 25 mm |
| BEARING TYPE | SSO2 Bearing |
| RPM | 300 RPM, 1500 RPM |
| CONNECTOR | 4 pin PWM |
| AIRFLOW | 165.04 CFM / 280.4 m3/h |
| NOISE LEVEL (MAX) | 24.6 dBA |
| WEIGHT | 1320 g |
